Product Info

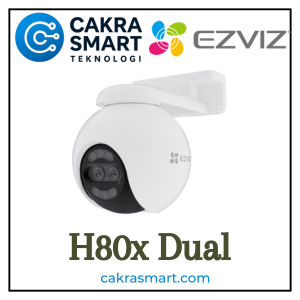

EZVIZ H80x Dual
4K Pan & Tilt Wi-Fi Camera
Specifications
| Specifications | |
|---|---|
| Model | CS-H80x-R100-8G82WKFL |
| Camera | |
| Image Sensor | 1/2.7” + 1/2.9” Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.0, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (1080p) 4mm @ F1.6, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (4K) |
| PT Angle | Pan: 340°, Tilt: 70° |
| Minimum Illumination | 0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day / Night Switch | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 3840 × 2160 |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra HD; Quad HD; Full HD;HD. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128 – bit WEP, WPA / WPA2, WPA-PSK / WPA2 – PSK |
| Transmission Rate | 11b : 11 Mbps, 11g : 54 Mbps, 11n : 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-powered human shape detection AI-powered vehicle shape detection |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Auto Tracking | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -30ºC ~ 50ºC Humidity 95% or less (non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 12V/1A |
| Power Consumption | MAX. 12W |
| Dimensions | 170 × 112 × 154 mm (6.69 × 4.41 × 6.06 inch) |
| Packaging Dimensions | 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch) |
| Weight | Product: 630 g (22.22 oz) Weight with package: 1035 g (36.5 oz) |
| In the box | |
| In the box | – H80x Dual 4K Camera |
| – Drill Template | |
| – Waterproof Kit | |
| – Screw Kit | |
| – Power Adapter | |
| – Regulatory Information × 2 | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
